The Beginning and Evolution: PAFMAC Story
- PAFMAC: The Beginning
Demand for Improving Air Conditioning in Hotel Rooms

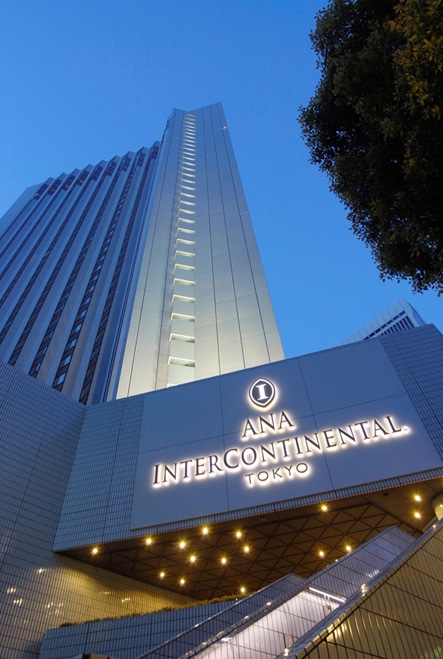

The ANA Intercontinental-Tokyo, formerly known as ANA Hotel Tokyo, was built in June, 1986, as part of Akasaka Arc Hills, a commercial and residential complex, with a designation as an international city hotel. The building was built with 2-pipe fan coil air-conditioning system. On the brink of its 10th year anniversary, the hotel conducted an evaluation on the building and facilities against other latest city hotels. From analyzing guest room questionnaire, it was discovered that 96% of the total complaints were related to air conditioning.
In order to resolve the situation in response to the complaints, the hotel considered upgrading to dual cooling and heating AC system to provide option for switching freely between the two functions.
Also, with further analysis, it became clear that it gained cooling load since the time of hotel completion.
3.1 Outline: ANA Intercontinental -Tokyo
Name of Building |
ANA INTERCONTINENTAL-TOKYO |
Purpose |
Hotel |
Address |
1-12-33 Akasaka, Minato Ward, Tokyo |
Completed |
March, 1986 |
Reform period |
July, 1996 to September 2005 30 days per Floor |
Total floor area |
98,331.68㎡ |
AC Coverage area |
63,000㎡ |
Floors |
3 basement floors, 37 floors above ground |
Number of guest rooms |
903 Rooms |
Guest room floors |
6 th through 35 th floor |
Rooms on standard floors |
33 rooms |
Heat source |
Receive chilled water and steam from district cooling and heating. |
Air conditioning system |
Pre-upgrade: (Single duct system of fresh air) + (2 pipe fan coil unit) Post upgrade：(Single duct system of fresh air)＋ (PAFMAC unit） |
PAFMAC units used |
903 units |
3.2 Main guest room types
Guest Room Type |
Area（ft²） |
Single Room |
236 |
Twin Room |
301～344 |
Double Room |
301～344 |
Suites |
624～699 |
